TTE480 Upgrade Performance Turbocharger VAG 2.0 TFSI (S3 8P, TTS, ED30, so on)

TTE Si

Site Sponsor
Site Sponsor
Might be poor tuning, i reviewed some dynos from the other pages quickly and most do not drop off that significant. But it seems after 5700-6000 power does start to fall off.

I'm interested in the benefits from this new 9-blade turbine.

Also, does the turbo come with N75 or do you have to swap over from old turbo?

Id say is tune related also. Id not say poor tuning but how they tune all have their style so to say.

Benefits are higher flowing over the previous 12blade turbine, lighter, larger, also new optimized bearing system to suit

We have not done back to back testing vs old, but we know this turbine and geometry, as are using in other hybrid upgrades we produce.

Really we will just let the results roll and let do the talking as many shipping so we then see a range of results from tuner to tuner, fuel differences and hardware.. This gives a better picture then 1 result.

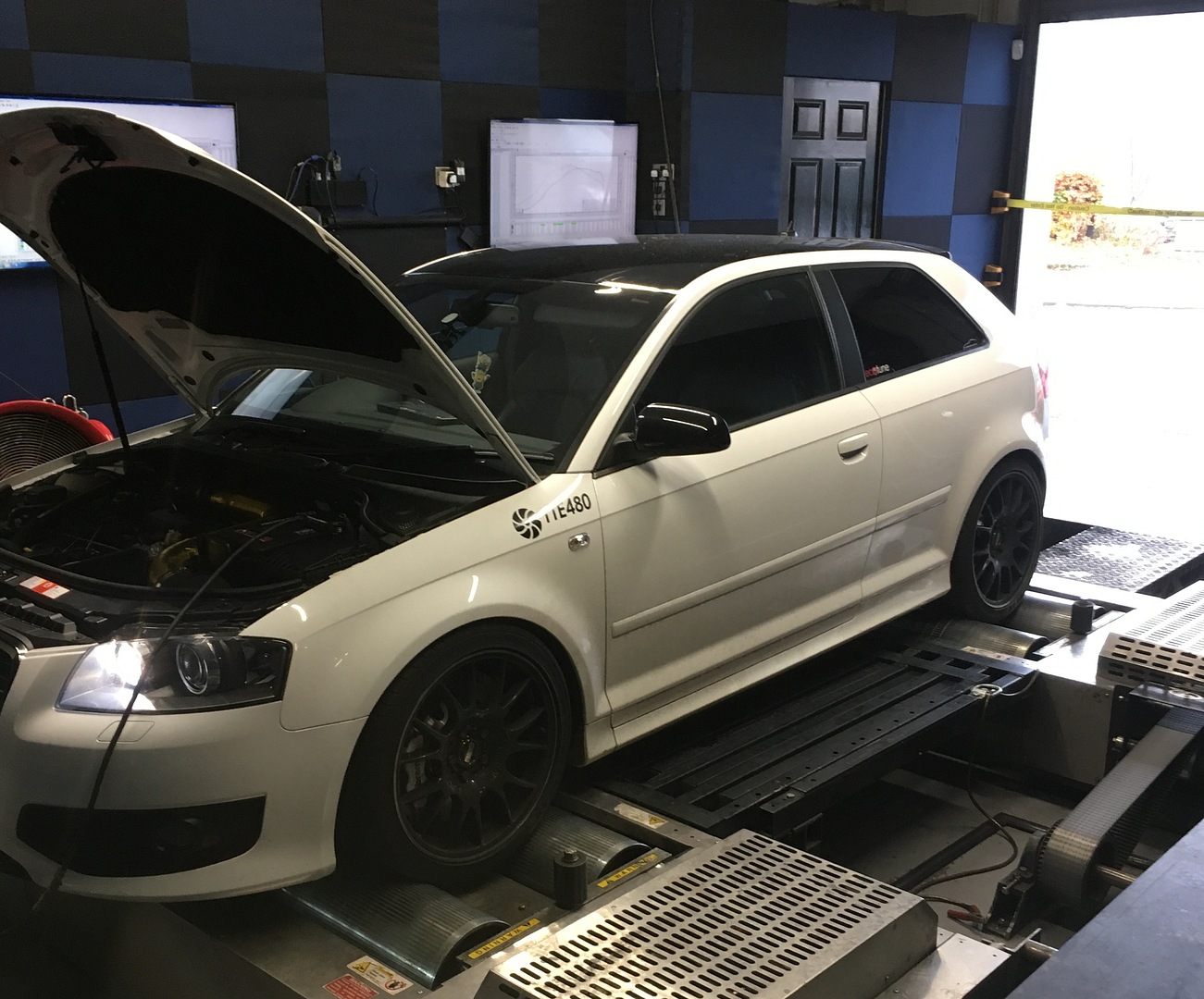

We do have a car on the dyno now and will share that but as ive said before...Tuners do get better at the results over time.


vwgolfr13

Registered User
Id say is tune related also. Id not say poor tuning but how they tune all have their style so to say.

Benefits are higher flowing over the previous 12blade turbine, lighter, larger, also new optimized bearing system to suit

We have not done back to back testing vs old, but we know this turbine and geometry, as are using in other hybrid upgrades we produce.

Really we will just let the results roll and let do the talking as many shipping so we then see a range of results from tuner to tuner, fuel differences and hardware.. This gives a better picture then 1 result.

We do have a car on the dyno now and will share that but as ive said before...Tuners do get better at the results over time.

If I order from USPmotorsports is there anyway to ensure I get the new 9 blade?

Also, do the turbos come with N75 or do I have to swap mine over?


DUBlclutch

Registered User
If I order from USPmotorsports is there anyway to ensure I get the new 9 blade?

Also, do the turbos come with N75 or do I have to swap mine over?
I would suggest contacting Phil @ USP directly. He'll get you squared away with the updated version. May also have a better deal, discount, etc...if you ask him. Not sure on N75, but iirc they come with if buying new.

Sent from my DROID4 using Tapatalk


TTE Si

Site Sponsor
Site Sponsor
100% all turbos sending out now are 9blade. So if ordered from USP sure you would get. I don't think Phil is aware as yet of the change

Yes turbo come with brand new original genuine N75 (sorry i missed that question )

Key Points:

  • Genuine BorgWarner Housings & Components
  • TTE Billet Highly Efficient Next Gen Compressor Geometry
  • Optimised Compressor Cover Machining Clearances
  • CNC Port Matched Exhaust Runners (The original VAG Manifold gasket needs enlarging to match the ports on the turbo)
  • CNC Optimised modified silencer discharge delete
  • CNC Ported Intake Pipe
  • TTE 9 Blade High-flow Turbine
  • Genuine BorgWarner Uprated & Reinforced Actuator
  • Genuine OEM Pierburg N75 Valve
  • Special TTE Reinforced Bearing System
  • Fitment As Original. Plug & Play
  • Dynamically Balanced
  • 480PS Proven
  • Designed, Machined & Built by TTE in Germany


DUBlclutch

Registered User
Si does TTE offer the port matched gasket for an upcharge? If not, do you know any purveyor that does offer it already port matched?
Thanks!

Sent from my DROID4 using Tapatalk


vwgolfr13

Registered User
I would suggest contacting Phil @ USP directly. He'll get you squared away with the updated version. May also have a better deal, discount, etc...if you ask him. Not sure on N75, but iirc they come with if buying new.

Sent from my DROID4 using Tapatalk
Do you know contact email? Nothing on their official website.

Nevermind I googled for it, thanks.


TTE Si

Site Sponsor
Site Sponsor

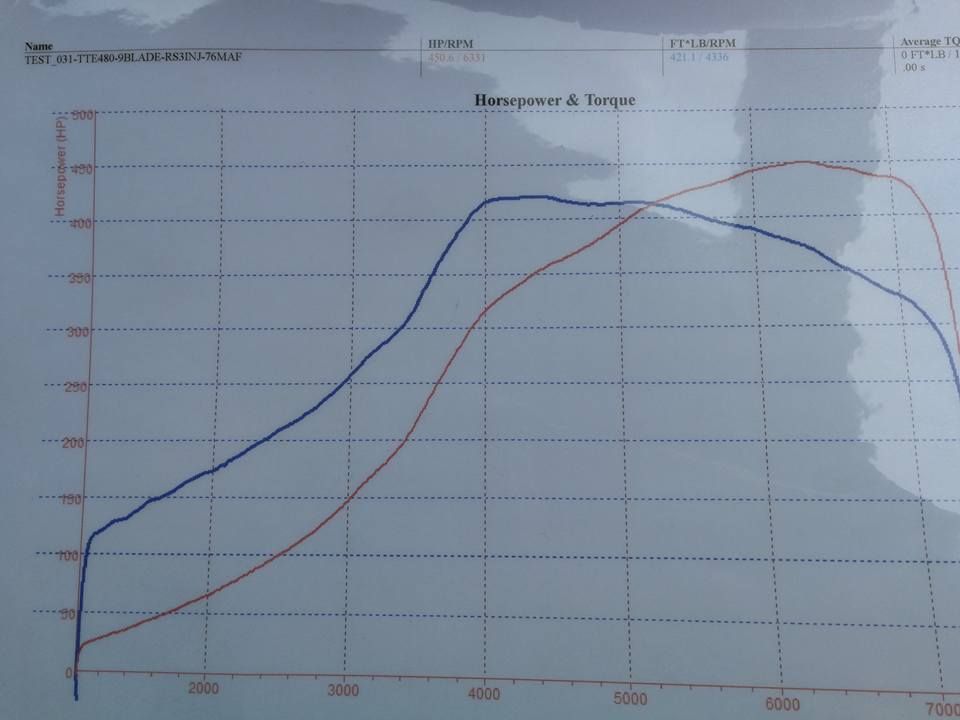

One of the first TTE480 9blade results from

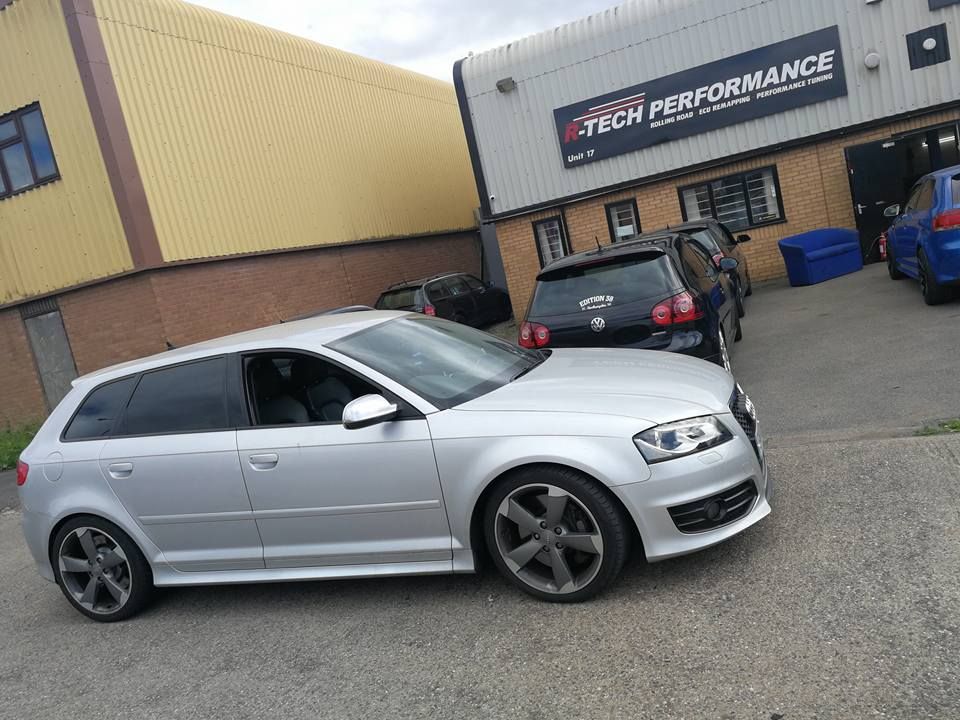

The UK tuner R-TECH


Audi S3 8p 6mt TTE480 9 blade on a stock CDL engine RS3 8v Injectors with AKS development head modification to allow perfect cold start and cleaner combustion like the stock Injectors. Peron FMIC - 100cell Sport cat - Revo intake with 76mm id AKS MAF tube.

Car setup for durability while on the stock engine...



Car was built & prepared by AKS Tuning




450HP 420FT 98ron (no wmi) stock engine. (456PS 637nm) Car will do more when forged engine is fitted


Markscirocco

Registered User
Scirocco 2.0 tsi ea888 gen1 to upgrade to TTE480
Do i need to upgrade engine internal?
Or can i just plug and play and add fule rs3 injector
Lpfp apr
Loba hpfp
And tune . ?


Space

Registered User
Scirocco 2.0 tsi ea888 gen1 to upgrade to TTE480
Do i need to upgrade engine internal?
Or can i just plug and play and add fule rs3 injector
Lpfp apr
Loba hpfp
And tune . ?

You need:
TTRS/RS3 LPFP (option to add Torbyte PM3 module)
HPFP: APR, LOBA, or AutoTech HPFP internals
AUDI RS4 PRV (double check this info, I know it is must on EA113)
RS3 injectors
Cold intake
Exhaust
Racing cooling RAD
Option (from my point must have for above 450HP): WMI system (suggestion Torqbyte CM5 controller + plus single nozzle)

Many people didn't upgrade internals, but if you expect 480HP+ (from my opinion) it is must have.


mars2

Registered User
I don't think RS3 injector fit EA888 Gen1. I can't find any body who fit those.
Only bigger injector that fit EA888 GEN1 that I'm aware of are LDK from Opel 30% more flow or the Nostrum 50% more flow but very expansive.
I would love that somebody proof me wrong and show that RS3 injector's fit.


Markscirocco

Registered User
Here list of thing i have so far,
Only concern on building Internal and injector.


Attachments

  • Screenshot_20181009-124045_Gallery.jpg
    909.5 KB · Views: 421

Markscirocco

Registered User
This injector that i think will fit ea888
The connector harness look same as original tsi injector. What do u think?


Attachments

  • Screenshot_20181009-124616_eBay.jpg
    130.9 KB · Views: 409
  • Screenshot_20181009-124911_Gallery.jpg
    1.2 MB · Views: 376

mars2

Registered User
The connector are same but the part that seat in the head of the engine look very different than a Bosch 0261500162 from EA888.
How do you know they would fit? because by eye it look like it will not fit.
Also are they made to be used at +150 bar like on EA888
Look at this graph where you can see that Continental V8 injector are falling out of flow at over 100bar of pressure.
https://www.nostrumshop.com/wp-content/uploads/2016/09/DI-Injector-flow-rates-v-pressure.png

And if you have to machine the head to fit those and change rail then it's cheaper to, fit 4 nostrum injector's that will outflow those.

I have some AUDI B8.5 Gen2 ( same as Gen1) 2.0TFSI Flexfuel Bosch ref 0261 500 164 that are proven by APR to be able to flow 374 CHP @ 190 bar with 100% E85 so about 480 Chp with regular gazoline according that E85 need 30% more flow. Those are plug and Play.

Last edited:

Markscirocco

Registered User
Ok thank for info, also am currently running K04 apr turbo, my plan is build engine first, chang Rod/piston after finish build engine again run same turbo K04,
To check if build engine is perfect, then move on change to TTe480. U think is best way of doin this, or just do it all strage to tte480 with same time as build engine. Thx


mars2

Registered User
Hi I was studying more the injector. look like the Golf MK7 R injector should fit.
Some guy's pushed those to 386 WHP with E85 so should able to push enough for you. VW part 06L906036L / Bosch part 0261 500 171
https://www.golfmk7.com/forums/showthread.php?t=14213&page=34
This is a USA GTI 7 so doesn't have the 8 injector ( 4 MPI) only the 4 DI
Also seams that Golf7 R injector have 10% more flow than G7 GTI.
https://www.golfmk7.com/forums/showthread.php?t=40240


I will order one of those to see how they can fit compare to OEM

Last edited:

Darren Simpson

Registered User
I live in Dubai but I would want this delivered to my house In the U.K. so I can take it back with me to Dubai.... what price would I be for a reconditioned unit? I have my UAE id if required.


TTE Si

Site Sponsor
Site Sponsor

Markscirocco

Registered User

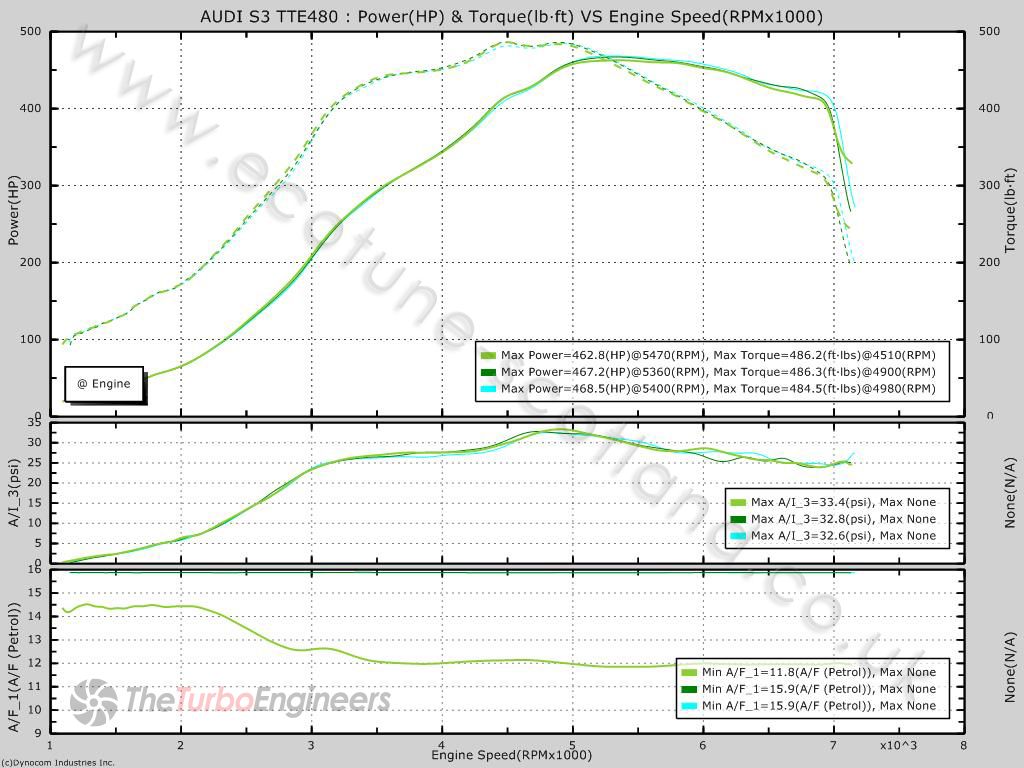

Result from the guys over at Ecotune in Scotland on James AUDI S3 8P 2.0TFSI

Spec list below:

TTE480 Upgrade Turbo
APR, LLC. HPFP
TTRS LPFP CONVERSION
APR DOWNPIPE + CUSTOM CAT BACK
AIRTEC INTERCOOLER
NEUSPEED DISCHARGE PIPES
RFD
98 RON Fuel (NO WMI)
ECOTUNE Custom tune
474ps 655Nm



Hi this dyno are wheel hp or engine hp thank


TTE Si

Site Sponsor
Site Sponsor
Demir'S Audi TTS 8J 2.0 TFSI DSG TTE480+

TTE480+ Hybrid turbo
Forged engine (Mahle PowerPak pistons + IE Tuscan rods)
+1mm oversized Ferrea valves with Ferrea spring kit
RS4 injectors
Forge intercooler
GFB dumpvalve
Milltek exhaust with catless downpipe
Autotech HPFP
TTRS LPFP with RS4 PWM Controller
CTS Intake kit with 90mm Green air filter
AEM WMI with 1000cc nozzle
Weight: 1550KG

Tuner
ECU: Custom by @anilguney (instagram)
TCU: Custom by @anilguney (instagram)

100-200 7.49 sec



welwynnick

Registered User
2. 2.0L TFSI High Performance Pistons & Conrods Set JE & BAR-TEK - https://www.bar-tek-tuning.com/2-0l-tfsi-high-performance-pistons-and-conrods-set-je-and-bar-tek Yes are ok and many use. I personally would not go JE pistons.
Hi Si,
Been wondering about this for a while - can you elaborate on that comment?
JE seem to have a decent reputation.
Have you had a bad experience with them?
Can you recommend other alternatives?
Is there a better place to discuss this?
Cheers,
Nick

Last edited:

TTE Si

Site Sponsor
Site Sponsor
VW Golf 6 R 2.0 TFSI 270pk 4-Motion
OEM Specs: 270pk & 350Nm
JD Stage 4: 452pk & 559Nm

Specs:
TTE480 Turbo
Full exhaust
Wagner Intercooler
VW Racing Intake
Big injectors
Autotech HPFP
RS3 Tankpump
165 bar fuel rail valve
Runnerflap delete
Walnut blasted intake
GFB DV+ (diverter valve)
JD Stage 4 software
JD DSG Stage 3 software
100ron fuel (no wmi used)






TTE Si

Site Sponsor
Site Sponsor
